LIQUID COLLECTORS



CHIMNEY TRAY LIQUID COLLECTOR

AMT International LDT-C01.JPG

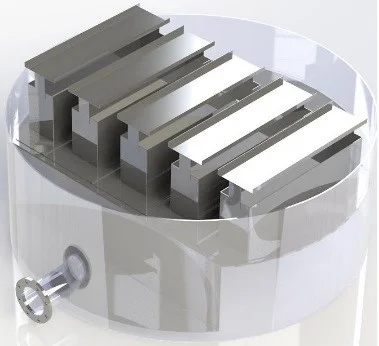

LCT-C01

Liquid collector with capped rectangular risers for gas distribution and liquid collection. Liquid is drawn out from a side sump

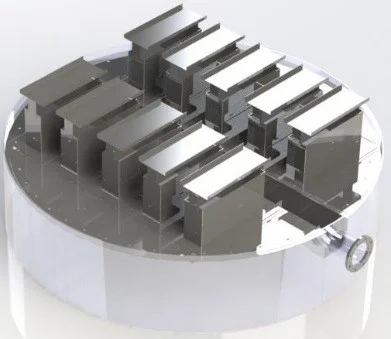

LCT-C02

Liquid collector with capped rectangular risers for gas distribution and liquid collection. Liquid is drawn out from a center trough.

AMT International LCT-C02

AMT International LCT-C03

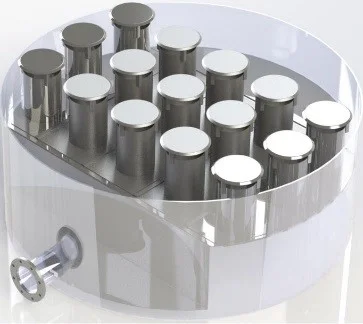

LCT-C03

Liquid collector with capped round risers for gas distribution and liquid collection. Liquid is drawn out from a side sump.

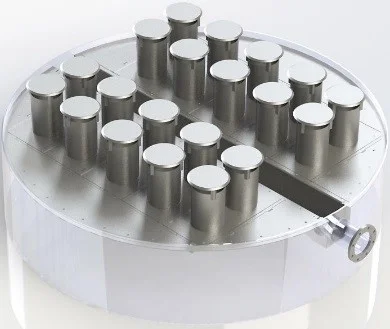

LCT-C04

Liquid collector with capped round risers for gas distribution and liquid collection. Liquid is drawn out from a center trough.

AMT International LCT-C04

CHEVRON LIQUID COLLECTOR

AMT International LCT-V01

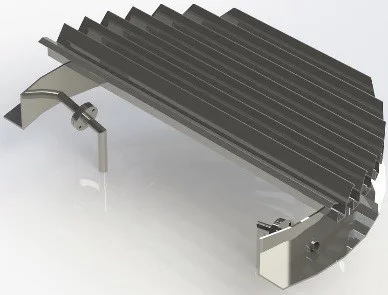

LCT-V01

Chevron type liquid collector with annular trough. Liquid is collected by the chevron shaped plate, and then flows into the annular trough. Incoming feed from outside the column may be introduced into the annular trough directly for better mixing

AMT International LCT-V02

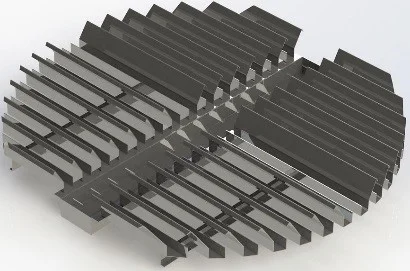

LCT-V02

Chevron type liquid collector with center trough. Liquid is collected by the chevron shaped plate, and then flows into the center trough.


TROUGH TYPE LIQUID COLLECTOR

AMT International LCT-T01

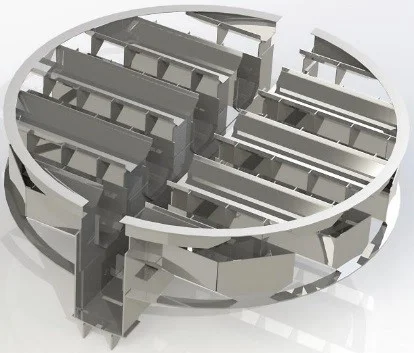

LCT-T01

Thermal expansion and contraction resistant.

Website Standard Line Image (3rd Croped).jpg

WALL WIPER LIQUID COLLECTOR

AMT International LCT-W02

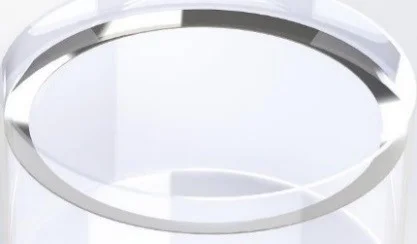

LCT-W01

Wall wiper liquid collector in the shape of a round ring collects liquid from the column wall and distributes it toward the center for better distribution in packed beds.
