FEED / FLASHING FEED DISTRIBUTORS



PIPE TYPE FEED INLET DISTRIBUTORS

AMT International FDT-P01

FDT-P01

Pipe type feed inlet with down pipes.


FDT-P02

Flashing feed pipe with bottom, side, and/or top baffles for liquid-vapor separation.

Provides two-phase flow distribution.

AMT International FDT-P02

AMT International FDT-P03

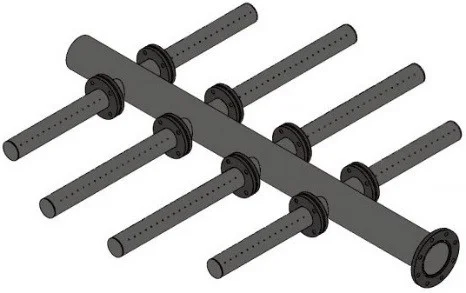

FDT-P03

Vapor distributor with multiple branch pipes.


FDT-P04

Vapor distributor with top baffles for vapor direction control.

AMT International FDT-P04

AMT International FDT-P05

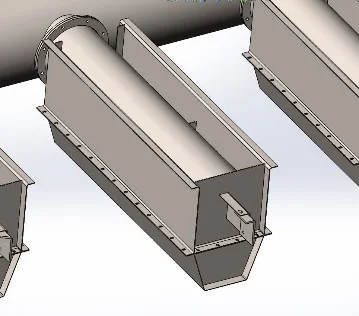

FDT-P05

Flashing feed pipe with bottom trough.


VAPOR HORN DISTRIBUTORS

AMT International FDT-A01.jpg

FDT-A01

Tangential Inlet Vapor horn for both liquid-vapor separation and feed distribution. This distributor contains integrated vanes inside the housing, allowing liquid and vapor to be effectively separated.

Website Standard Line Image (3rd Croped).jpg
AMT International FDT-A02

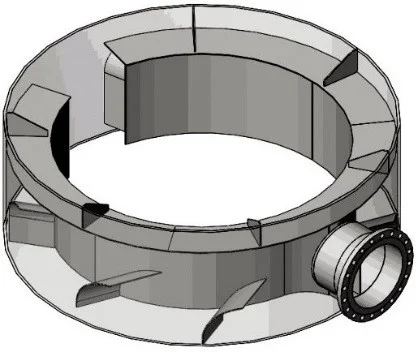

FDT-A02

Straight Inlet Vapor horn for both liquid-vapor separation and feed distribution. This distributor contains integrated vanes inside the housing, allowing liquid and vapor to be effectively separated.


GALLERY TYPE DISTRIBUTORS

AMT International FDT-G01

FDT-G01

Flashing / Vapor distributor with polygonal gallery for gas-liquid separation. Liquid is collected inside the gallery, while vapor disengages from the liquid through the opening above.

Website Standard Line Image (3rd Croped).jpg
AMT International FDT-G02

FDT-G02

Flashing / Vapor distributor with circular gallery for gas-liquid separation. Liquid is collected inside the gallery, while vapor disengages from the liquid through the opening above.


INLET BAFFLE / DIFFUSER TYPE DISTRIBUTORS

AMT International FDT-B01

FDT-B01

Inlet diffuser with “V”-baffle to reduce the energy of incoming flow and provides some liquid-vapor separation.


FDT-B02

Inlet diffuser with multiple baffles to reduce the energy of incoming flow. Effectively separates two-phase feed and provides more uniform distribution.

AMT International FDT-B02.jpg

VANE TYPE DISTRIBUTORS

AMT International FDT-V01

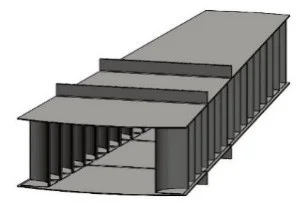

FDT-V01

Vapor / flashing feed distributor with curved vanes for mixing and reentrainment prevention. The energy of the incoming flow is effectively reduced.


FDT-V02

Flashing feed chamber with centrifugal force providing effective liquid-vapor separation. Liquid exits from bottom while vapor exists from the top.

AMT International FDT-V02
